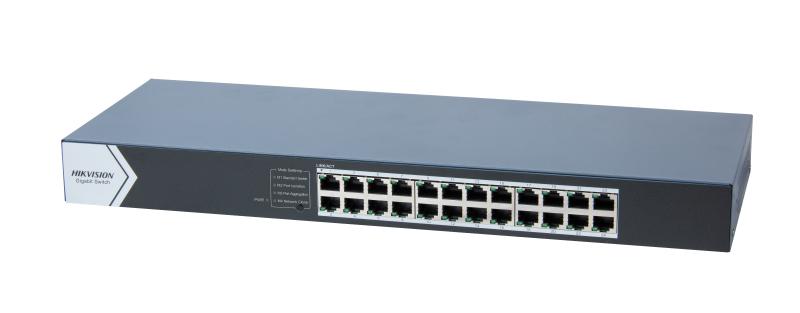

Hikvision DS-3E0524-E(C)

Hikvision DS-3E0524-E(C) – 24-Port Gigabit Rack-Mount Switch with 48Gbps Switching Capacity & 6KV Surge Protection

Looking for a reliable and high-performance networking solution? The Hikvision DS-3E0524-E(C) 24-Port Gigabit Switch is designed to enhance connectivity for businesses, offices, and security systems. This switch delivers high-speed data transmission, ensuring seamless performance for demanding applications. Explore this product and more Hikvision networking solutions at lucentvirtuoso.

Key Features

• 24 x Gigabit RJ45 Ports – Ensures ultra-fast data transmission.
• 48 Gbps Switching Capacity – Enables smooth data flow for high-bandwidth applications.
• Surge Protection (6 KV) – Provides enhanced safety against electrical surges.
• Rack-Mountable Design – Ideal for professional networking setups.
• Fan-Free Metal Shell – Offers silent operation with efficient heat dissipation.
• Power Efficiency – Low power consumption of just 18W (max) and 3.8W in idle mode.
• Reliable Performance – Supports 8K MAC address table, 4.1 Mbits internal cache, and 35.71 Mpps packet forwarding rate.
• Wide Operating Temperature – Works optimally between 0°C to 40°C.
• Compliant with EMC and Safety Standards – Certified with CE-EMC, RCM, CE-LVD, CB, and more for high safety and environmental standards.

Technical Specifications data sheet

General

• Material: Metal shell, fan-free design
• Net Weight: 1.4 kg (3.1 lb)
• Gross Weight: 1.9 kg (4.2 lb)
• Dimensions: 440.00 mm × 44.00 mm × 160.00 mm (17.32” × 1.73” × 6.30”)
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity: 5% to 95% (no condensation)
• Relative Humidity: 5% to 95% (no condensation)
• Power Supply: 100-240 VAC, 50/60 Hz, Max. 0.7 A
• Max Power Consumption: 18 W
• Power Consumption (Idle): 3.8 W
• Installation Mode: Rack (equipped with mounting ears)
• Surge Protection: 6 KV

Network Parameters

• Ports: 24 × Gigabit RJ45 ports
• MAC Address Table: 8 K
• Switching Capacity: 48 Gbps
• Packet Forwarding Rate: 35.71 Mpps
• Internal Cache: 4.1 Mbits

Approvals & Certifications

• EMC Compliance: CE-EMC, RCM
• Safety Standards: CE-LVD, CB
• Environmental Compliance: CE-RoHS, WEEE, Reach
