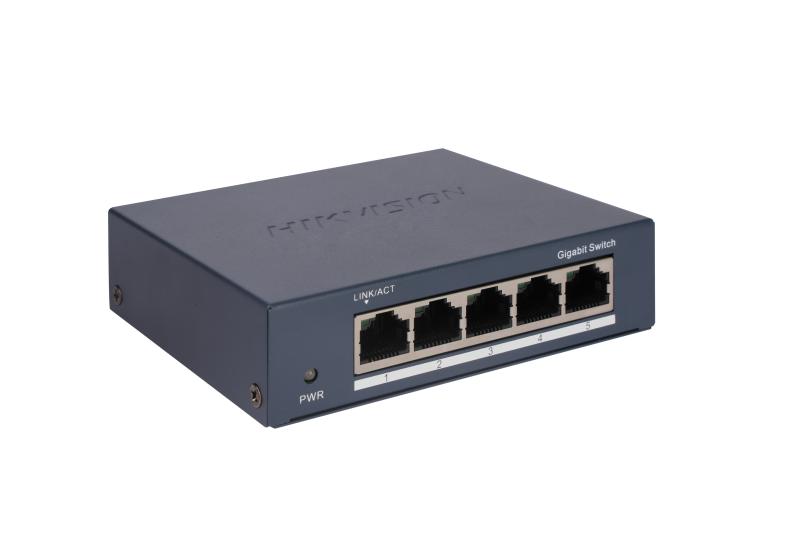

Hikvision DS-3E0505-O – 5-Port Gigabit Desktop Switch with Metal Shell and 10Gbps Capacity

Looking for a reliable and efficient networking solution? The Hikvision DS-3E0505-O 5-Port Gigabit Switch is the perfect choice for both home and business use. This compact yet powerful switch enhances network performance, ensuring seamless data transfer and minimal latency. Designed with a fan-free metal shell, it offers durability and silent operation. Get this advanced switch today from lucentvirtuoso for unmatched networking efficiency.

Key Features

• 5× Gigabit RJ45 Ports – Supports high-speed data transmission with a 10 Gbps switching capacity.
• Metallic Shell Design – Durable, fan-free design ensures silent operation.
• Compact and Lightweight – Weighs only 0.17 kg, making it easy to install in any setup.
• Wide Operating Temperature Range – Functions effectively between 0 °C to 40 °C.
• Advanced Surge Protection – Comes with 6 KV surge protection, enhancing reliability.
• Low Power Consumption – Maximum power consumption of just 3 W, making it an energy-efficient choice.

Specifications

General

• Material: Metal shell, fan-free design
• Net Weight: 0.17 kg (0.37 lb)
• Gross Weight: 0.35 kg (0.77 lb)
• Dimensions: 105.00 mm × 27.60 mm × 83.10 mm (4.13” × 1.09” × 3.27”)
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity: 5% to 95% (no condensation)
• Power Supply: 5VDC, 0.6A
• Maximum Power Consumption: 3 W
• Idle Power Consumption: 0.25 W
• Installation Mode: Desk-mounted, Wall-mounted
• Surge Protection: 6 KV

Network Parameters

• Ports: 5 × Gigabit RJ45
• MAC Address Table: 2 K
• Switching Capacity: 10 Gbps
• Packet Forwarding Rate: 7.44 Mpps
• Internal Cache: 3 Mbits

PoE Power Supply

• PoE Standard: Not applicable
• PoE Power Pin: Not applicable
• PoE Port: Not applicable
• Max. Port Power: Not applicable
• PoE Power Budget: Not applicable

Dialing Function

• Long Range: Not applicable
• Port Isolation: Not applicable
• PoE Watchdog: Not applicable

Approval & Certifications

• EMC Compliance: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
• Safety Standards: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
• Environmental Compliance: CE-RoHS (2011/65/EU), WEEE (2012/19/EU), REACH (Regulation (EC) No.1907/2006)

Why Choose the Hikvision DS-3E0505-O?

With its robust build, efficient performance, and low power consumption, the Hikvision DS-3E0505-O 5-Port Gigabit Switch is ideal for home and office networking. It guarantees a smooth and reliable connection, making it an excellent investment for seamless data transmission. Get yours today from lucentvirtuoso
